RFID Key TAG
Metal TAG

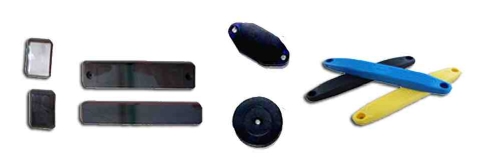

Metal Tag Metal Yüzey üzerine Endüstriyel Uygulamalar için geliştirilmiş RFID Ürünüdür.
Metal Yüzeye Vida veya Yapıştırıcı ile uygulanabilir. Metalin Radyo Parazitini önleyici sistemi vardır.
Metal Tag uygulamada çok sağlam ve sabit bir şekilde durur.
Özellikler;
* Operating Frequency : 125 KHz or 13.56 MHz
* Reading Range : depends on the reader design
* Operating Temperature : -30~70 oC
* Storage Temperature : -40~90 oC
Available ICs:
* Common chips of LF, HF found in the market can be embeded. For specific chip or chip not listed below, please contact us directly for confirmation.
Frequency Access Standard Chip Type
125KHz Read only EM4100 (64 bit)
EM4102 (64 bit)
125KHz Read & Write Atmel T5567 (330 bit)
13.56MHz Read & Write ISO14443
Mifare S50 (1K byte)/Mifare S70 (4K byte)
13.56MHz Read & Write ISO15693 / ISO18000-3
ICODE2 (1024 bit) / TI2K(2048 bit)
DHSSLG01-125KHz
EM4100 IC
DHSKAB-01
Ürün/Çip Adı......... Materyal .......................... Dalga Boyu
H4100KeyFob.......ABS/PVC...........................125kHz(read only), passive
H4102KeyFob.......ABS/PVC...........................125kHz(read only), passive
EM4001KeyFob.......ABS/PVC...........................125kHz(read only), passive
H4069KeyFob.......ABS/PVC...........................125kHz(read/write), passive
H4150KeyFob.......ABS/PVC...........................125kHz(read/write), passive
H4469KeyFob.......ABS/PVC...........................125kHz(read/write), passive
H4550KeyFob.......ABS/PVC...........................125kHz(read/write), passive
T5557KeyFob.......ABS/PVC...........................125kHz(read/write), passive
Hitag1KeyFob.......ABS/PVC...........................125kHz(read/write), passive
Hitag2KeyFob.......ABS/PVC...........................125kHz(read/write), passive
HitagSKeyFob.......ABS/PVC...........................125kHz(read/write), passive
MifareS50KeyFob.......ABS...........................13,56MHz(read/write), passive
MifareS70KeyFob.......ABS...........................13,56MHz(read/write), passive
MifareUltraLight......ABS..............................13,56MHz(read/write), passive
I-Code1 KeyFob .......ABS ............................13,56MHz (read/write), passive
I-Code2 KeyFob ................ABS/PVC..........................13,56MHz (read/write), passive
MifareDesFireKeyFob.......ABS.....................13,56MHz(read/write), passive
Legic min256KeyFob............ABS...........................13,56MHz(read/write), passive
SR176KeyFob..............ABS...........................13,56MHz(read/write), passive
TiKeyFob.....................ABS...........................13,56MHz(read/write), passive
|
